Projects Chart View - Teamwork.com Support

✔️ Available on all subscriptions

What	A timeline view of all projects and milestones shared with you.
Why	Monitor projects' status (late, current, completed). Get a holistic view of milestones due across all projects. Share insights with key stakeholders using Chart exports.
Who	Site admins can view and manage all projects in the Chart. Project admins can view and manage all projects they're an admin on in the Chart. Standard users, client users, and collaborators can view all projects they're a member of in the Chart. Standard users and client users with the profile permission: Add projects (allows users to create new projects and manage existing projects' settings) Users with the project permission to: View tasks & milestones (allows users to see that project's milestones in the Chart) Add milestones (allows users to edit that project's milestones from Chart view)
When	Any time you need to see how project timelines overlap or interact or want to see key milestones (across projects in one place).

What	A timeline view of all projects and milestones shared with you.
Why	Monitor projects' status (late, current, completed). Get a holistic view of milestones due across all projects. Share insights with key stakeholders using Chart exports.
Who	In Chart: Site admins can view and manage all projects. All users (standard, client, and collaborators) can view all projects they're a member of. Project admins can view and manage all projects they're an admin on. Users with the profile permission to: Add projects (allows users to create new projects and manage existing projects' settings) Users with the project permission to: View tasks & milestones (allows users to see that project's milestones in the Chart) Add milestones (allows users to edit that project's milestones from Chart view)
When	Any time you need to see how project timelines overlap or interact or want to see key milestones (across projects in one place).

Projects must have start and end dates to appear on the Chart.

Access the projects Chart view from your site's Planning area.

Click Planning in Teamwork.com's main navigation menu. Planning might be hidden under the ... More option.
Switch to the Chart tab.

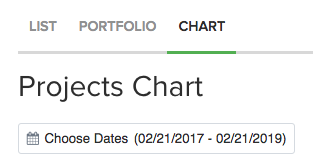

Click Choose Dates in the Chart's top left. Alternatively, click the chevron () beside the current date range.
Select dates to apply as the timeframe you're looking at. Projects falling partially or fully within the date range are displayed. A vertical dotted blue line indicates the current day.

📝 The color indicators to the left of each project name represent their associated project category.

Zoom: Click the magnifying glass icons () in the Chart's top right to zoom in or out. This changes the date increments shown in the Chart's header (ex. years, months, weeks, days).
View: Hover over a project's timeline bar to view the project's details (name, company, owner, category, status, and dates).
Scroll: Click the arrow () on a project name's right to scroll the timeline to that project.

Projects are color-coded depending on their current status.

Status	Definition
	Upcoming (yellow): The project hasn't been marked complete and its start date has not passed.
	Current (blue): The project hasn't been marked complete, its start date has passed, and its end date is upcoming.
	Late (red): The project hasn't been marked complete and its end date has passed.
	Completed (green): The project has been marked complete.

Status	Definition
	Upcoming (yellow): The project hasn't been marked complete and its start date has not passed.
	Current (blue): The project hasn't been marked complete, its start date has passed, and its end date is upcoming.
	Late (red): The project hasn't been marked complete and its end date has passed.
	Completed (green): The project has been marked complete.

Each project's milestones are displayed in the Chart on their due date. They are color-coded based on their current status.

💡 Hover over a milestone to view its details (name, assignee, due date, status).

Status	Definition
	Upcoming (yellow): The milestone is active and its due date is upcoming.
	Late (red): The milestone is active and its due date has passed.
	Completed (green): The milestone has been marked complete.

Status	Definition
	Upcoming (yellow): The milestone is active and its due date is upcoming.
	Late (red): The milestone is active and its due date has passed.
	Completed (green): The milestone has been marked complete.

Customize the Chart using filters to refine the projects shown.

Scroll to the relevant filter (options outlined below) and select the criteria you want to apply.

Filter	Purpose
Keyword	Show projects whose names match (or partially match) a specific search term.
Company	Show projects associated with specific companies.
Tags	Show projects with any or all selected tags applied.

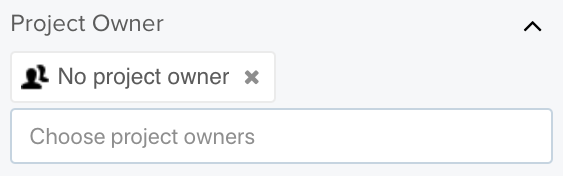

Project owner	Show projects associated with specific project owners or projects with no owner.
Project health	Show projects based on their current project health.

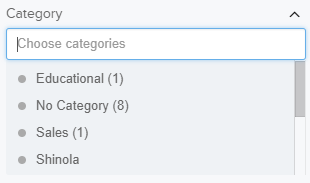

Category	Show projects based on their assigned category or ones with no category.

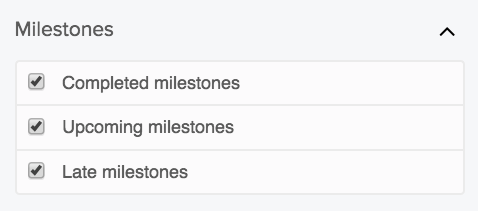

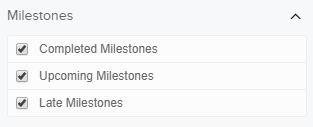

Milestones	Use checkboxes to refine which milestones are shown: Completed Upcoming Late
Options	Use checkboxes to refine by: Show starred projects only. Hide projects where I'm an observer. Hide projects marked completed Show only projects where I'm a member. 🔑 These options vary depending on your permissions.

Filter	Purpose
Keyword	Show projects whose names match (or partially match) a specific search term.
Company	Show projects associated with specific companies.
Tags	Show projects with any or all selected tags applied.
Project owner	Show projects associated with specific project owners or projects with no owner.
Project health	Show projects based on their current project health.
Category	Show projects based on their assigned category or ones with no category.
Milestones	Use checkboxes to refine which milestones are shown: Completed Upcoming Late
Options	Use checkboxes to refine by: Show starred projects only. Hide projects where I'm an observer. Hide projects marked completed. Show only projects where I'm a member. 🔑 These options vary depending on your permissions.

View the filtered Chart: The Chart updates automatically as you select filter criteria.

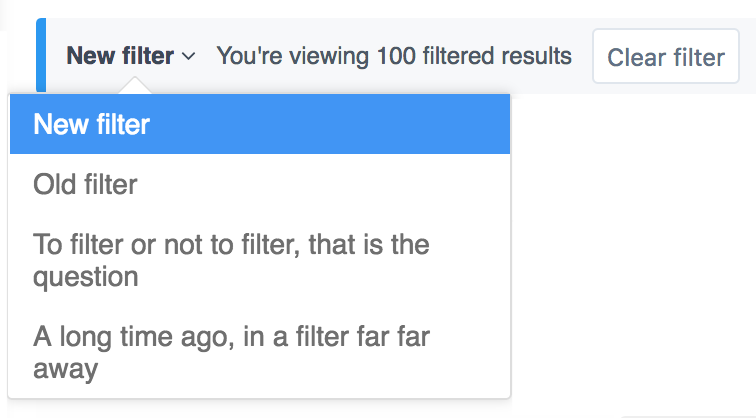

Save the filter: Click Save Filter at the bottom of the filters panel to save the current filter criteria for quick use in the future. Alternatively, click Save Filter at the top of the Chart view.
Clear the current filter: Click Clear Filter at the bottom of the filters panel. Alternatively, click Show full chart at the top of the Chart view.

Sort the projects order in Chart view.

Click Planning in Teamwork.com's main navigation menu. Planning might be hidden under the ... More option.
Switch to the Chart tab.
Click the sort icon () in the view's top right.
Select a sort preference.
Click asc or desc beside the active sort option to switch between ascending and descending order.

Export the projects Chart to a shareable file.

Click Planning in Teamwork.com's main navigation menu. Planning might be hidden under the ... More option.
Switch to the Chart tab.
Click the print icon () in the Chart's top right.
Next, choose a print size: A4 landscape, A4 portrait, or don't resize.
Click Print.
Next, choose your print preference:
