Within Teamwork, you can switch to board view to organise tasks in the project using cards within columns.



Everyone on the project will be able to view the board.

You can use columns to represent the progress of a task through various stages.

Image Placeholder


In the Tasks area of your project, click the view dropdown and select Board.

Image Placeholder

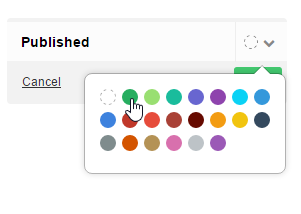

Once you switch to board view, you can create new columns (as long as you have the appropriate permissions) using the Add a Column button. Give your column a name and if you like, you can choose a color.

Image Placeholder


Click the Save button and do the same for any more columns you'd like to add. You can edit the column name or color later just by clicking the name.

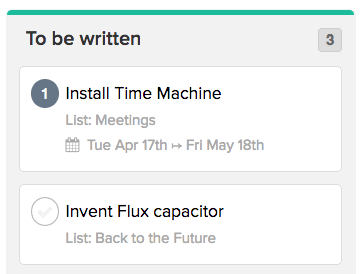

When task cards are added to a board column, any cards assigned to you will be highlighted by a green border.

Image Placeholder

Board view options

Click the options (three dots) button in the top right corner of the board view, to see the options available.

From here, you can:

  • Share Filter - only visible when a filter is active.
  • View Archived Cards
  • Manage Columns
  • Minimise Card Details
  • Save to My Boards - only an option if the My Boards feature has been enabled.
  • View Keyboard Shortcuts

Image Placeholder

Archiving completed cards

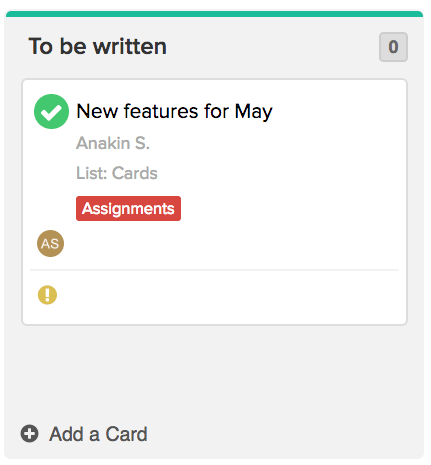

You can choose to archive any completed cards that may be completed in your board columns.

Click the options button (three dots) to the right of the column name and select Archive Completed Cards. This will remove any cards already marked as complete from the column.

Image Placeholder

Sorting cards

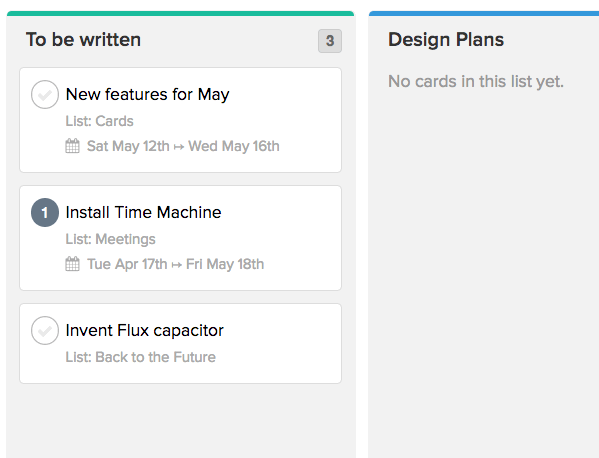

You can sort the tasks/cards in each of your column via the column options. Click the down arrow to the right of the column name, and select 'Quickly Sort Cards' from the dropdown menu.

Sort Options:

  • Name
  • Priority
  • Date Created
  • Date Completed
  • Assignee
  • Due Date
  • Start Date
  • Task List

Image Placeholder

Moving cards and columns

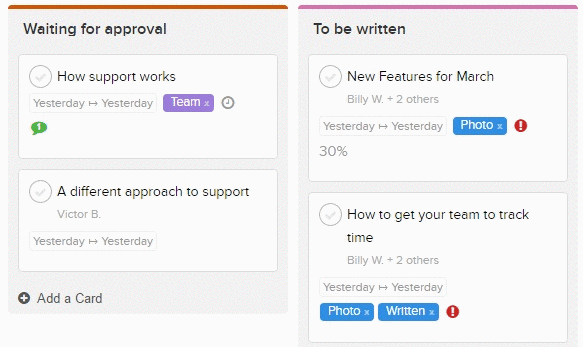

Hover over a card, then click and drag it to another column.

Image Placeholder

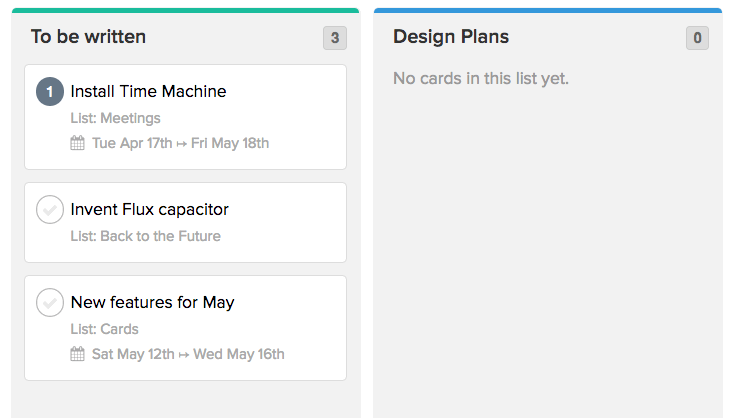

You can also use drag and drop to reorder cards within a column.

To rearrange columns, just click (outside the title in the header) and drag them in the same way as cards to their new position.

Image Placeholder


Viewing and editing options

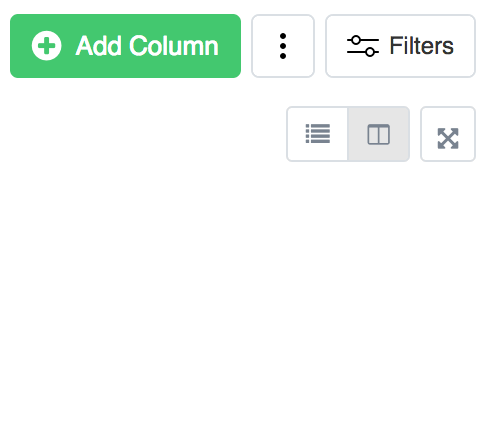

In board view, you can hide the project sections and the site header so that you can work with a larger area to organise your tasks by clicking the full screen option.

Image Placeholder

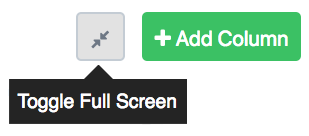

When in full screen view, click the toggle to revert back to the regular view.

Image Placeholder


To view the details for an individual task, click anywhere on the card and you will see the quick view panel on the right with the task details.

To quickly edit details directly, hover over a card and click the pencil icon.

Image Placeholder

Collapsing Columns


In the column options, you can collapse a column to minimize it when you are not working on it.

Image Placeholder

Filtering


In the advanced filters pane in board view, you can filter which tasks and columns are shown.

Filter options:

  • Keyword
  • Show/hide board columns
  • Assigned To
  • Date
  • Tags
  • Priority
  • Task Lists

Column settings

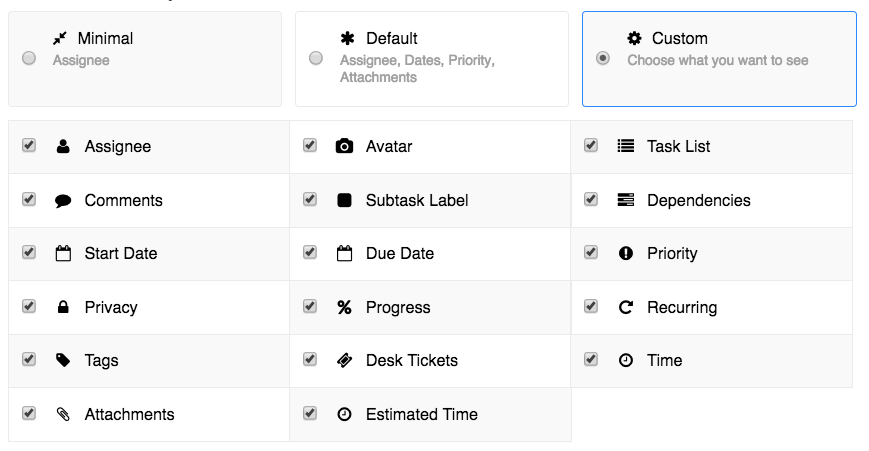

In board view, the column settings allow you to choose which details you would like to display for tasks in the column:

  • Minimal - Shows the assignee
  • Default - Shows the assignee, dates, priority, attachments
  • Custom - You can choose which details to include
Image Placeholder

In the column settings, you can also add triggers to automatically make changes to cards, set a default task list for cards, and choose a sorting option for the column.

Viewing column details in list view


When you switch back to the list view of your tasks, you will see a label beside each task that has been added to a board column, mentioning the column name.

Image Placeholder

Click the board to change or remove it from the task.

You can also add cards to board columns from within list view.

Note: The Free Forever plan is limited to 3 board columns and 10 cards per column.
